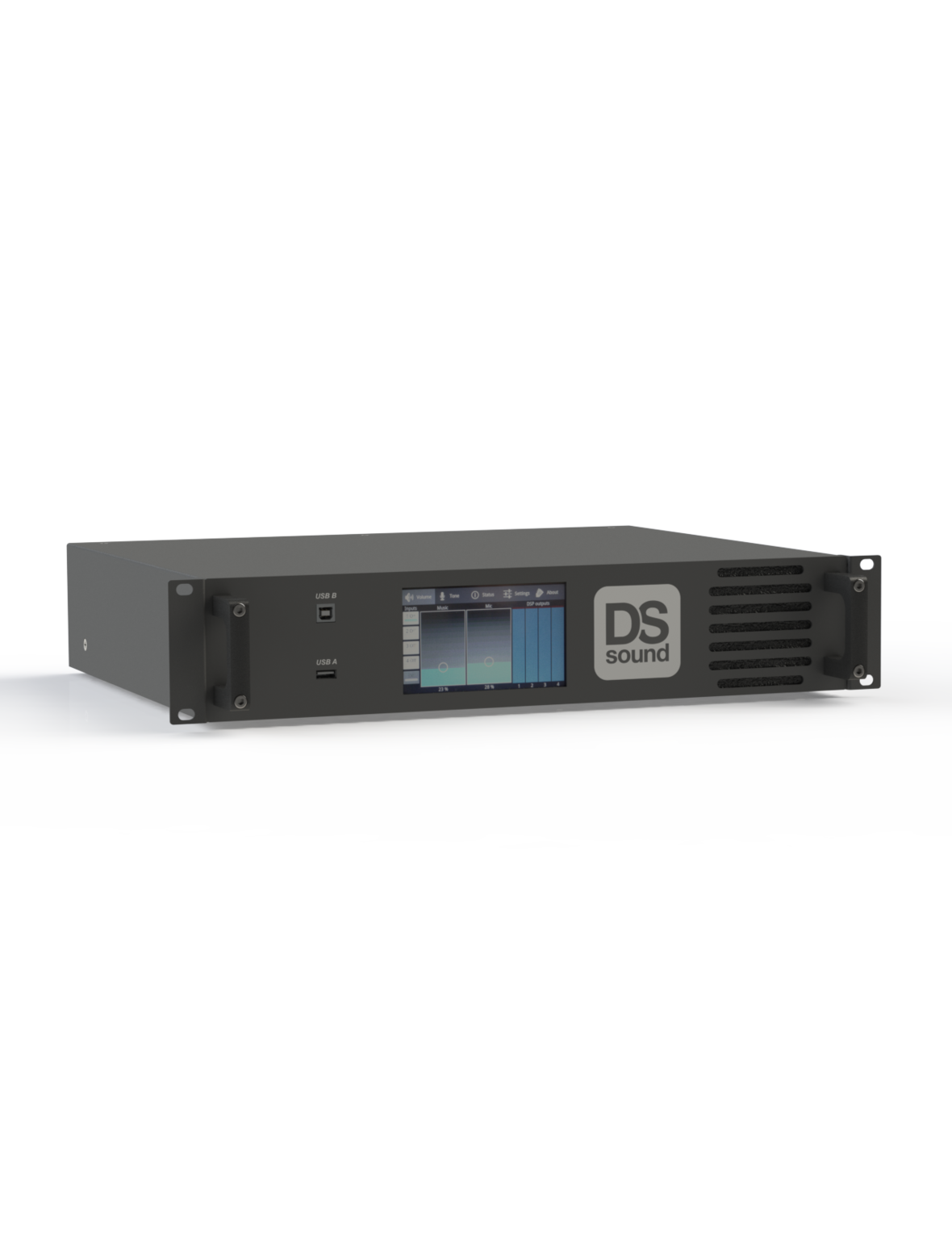

C-SERIES Amplifier


Introducing the C-Series(compact)range of mixer amplifiers, a feature packed product designed with simplicity and space saving in mind!

A complete mixer/amplifier/DSP in one compact 2U chassis typically used on small to medium attractions, games and bars or as part of a larger system using extra external amplification such as the TMA3000 MK2 DSP

Available as:

-C1002  (2 x 500w)

-C1004 (4 x 500w) or (2 x 1000w Bridge mode @ 4 ohms)

-C3004 (4 x 750w) or (2 x 1500w Bridge mode @ 4 ohms)


• Complete mixer/Class-D amplifier/DSP in 1 compact 2U chassis

• Modular construction for ease of service by user

• Touchscreen control panel

• Compatible with CR-1 Compact remote control to allow amplifier to be stowed away

• Easy to use user interface (GUI)

• 4 Channel models can be configured as a stereo 2 way system or higher power Bridge mode using in-built presets or user defined LP/HP  filters

• All models can be connected to further external amplifiers to expand a system making full use of the inbuilt DSP

• Highly efficient inbuilt Class-D amplifier modules can be simply removed and exchanged

• Inrush current limiter

• Protected against short-circuit, overload, and over-temperature

• Speed-controlled fan ensures quiet operation

• 19″ Rack mountable

• 4 music inputs with volume and tone controls

• 1 microphone input with separate volume and tone control

• Multiple inputs can be selected at the same time

• Dedicated sound-box input compatible with all models of DS Sound boxes via 9 pin Dsub connection on rear

• Dedicated TRS insert socket for direct connection of our Echo350

• All volume/tone settings can be stored as a pre-set which is automatically recalled when the system is powered on

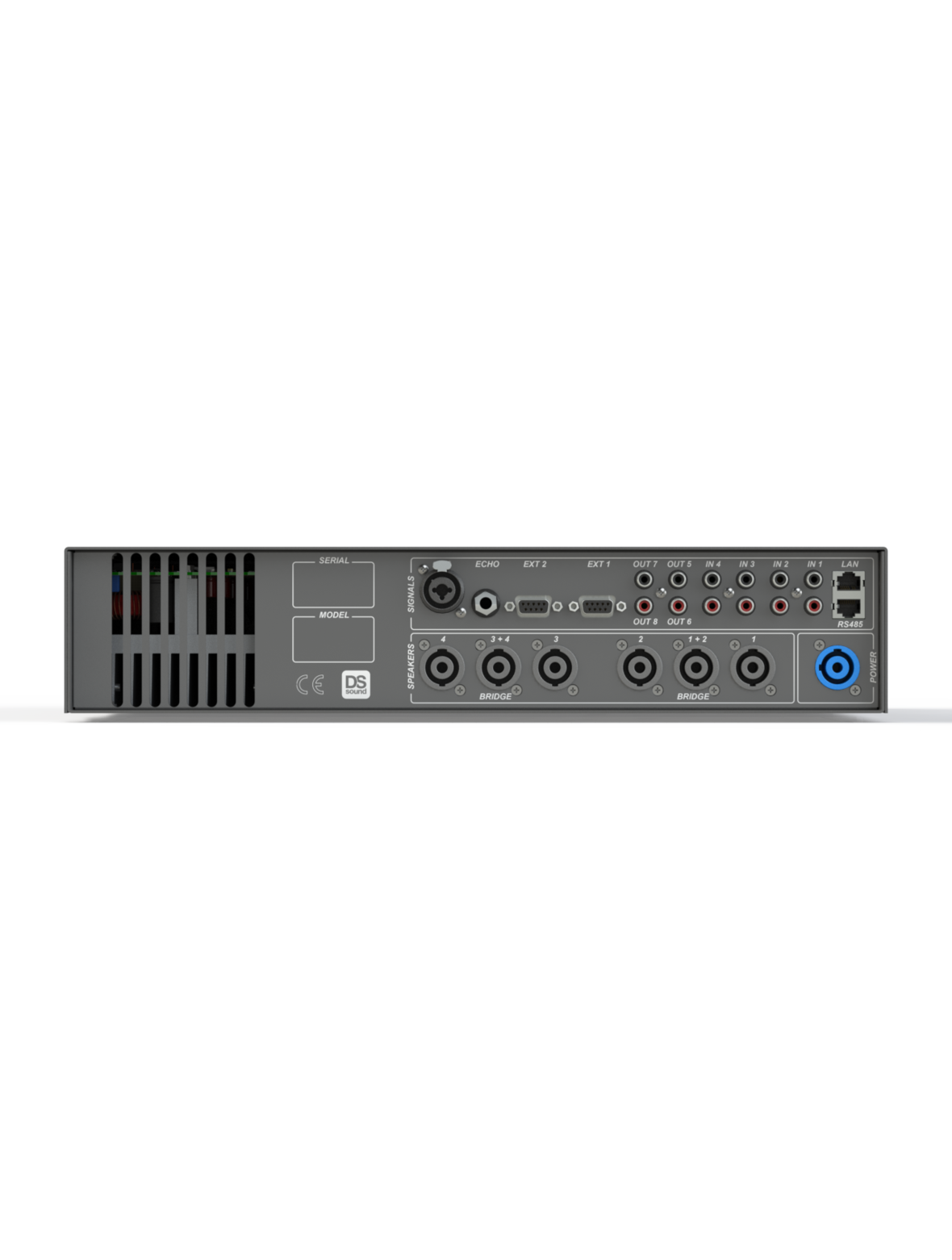

• Neutrik Speakon outputs

• Neutrik PowerCon cable included
