F108s Full Range Speaker

Description

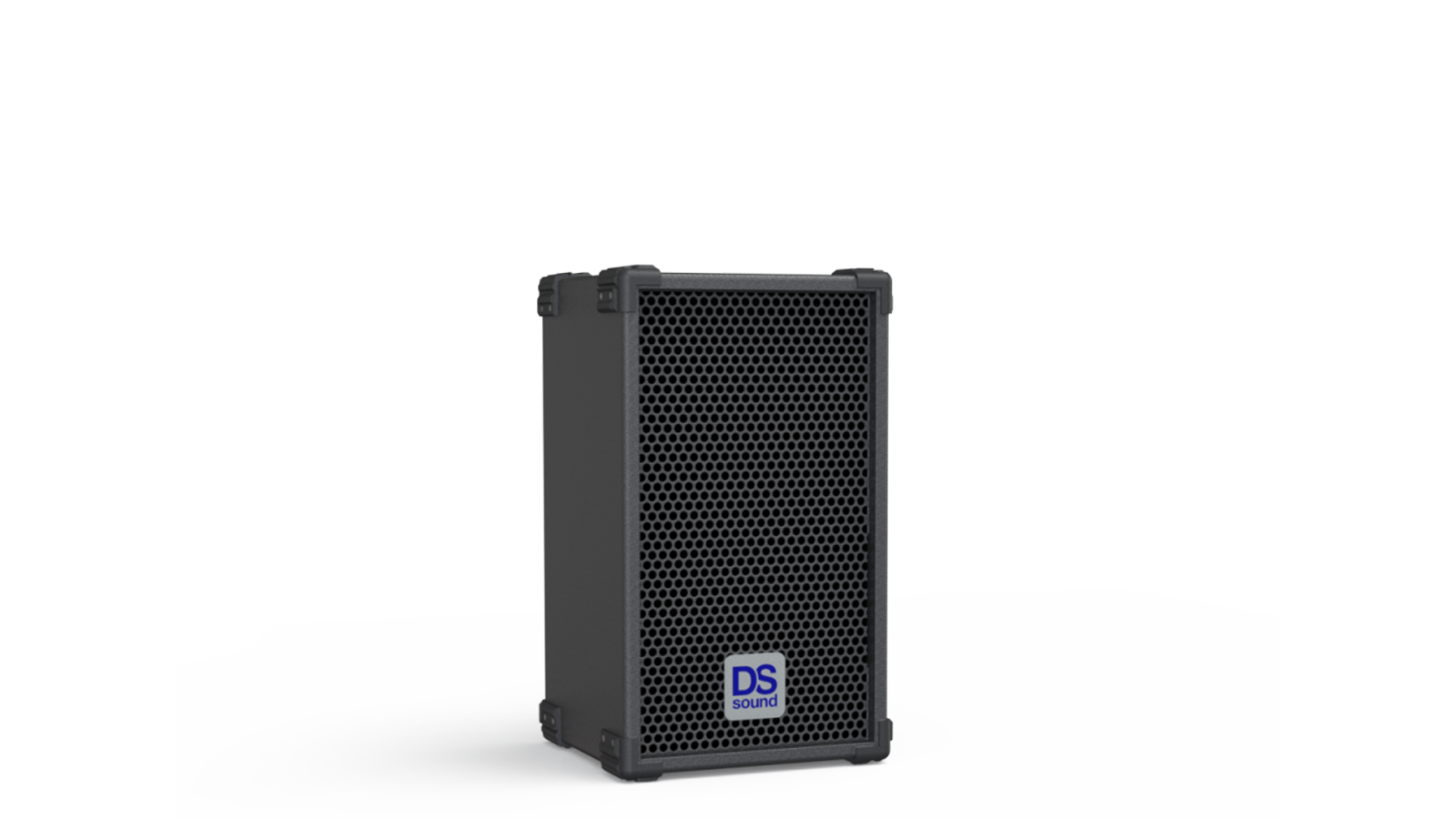

Introducing the F108s  8″ LF and 1″ HF  Full range speaker cabinet designed for standalone use or to further complement our Top (Mid/Hi) & subwoofer cabinets.

All DS Sound speaker cabinets are CNC machined in our own factory to ensure a high quality fit and finish and are constructed from high quality waterproof birch plywood. After the cabinet is constructed and hand finished it is sprayed with a tough polyurethane 2 component coating to further protect it from the elements.

All cabinets use the highest quality Italian transducers complemented by our own passive filter networks assembled using only the best grade passive components. (Subwoofers are actively filtered via our DSP amplifiers or external loudspeaker management)

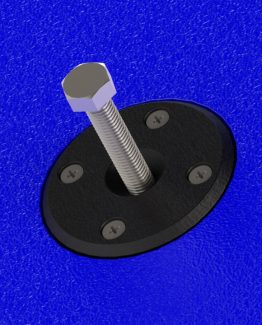

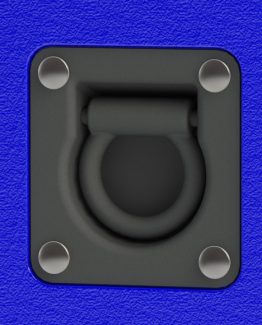

Optional security mounts and custom RAL finishes can be specified during the consultation phase.

Technical specifications:

  • Height: 458mm (18.03″)

  • Width: 273mm (10.74″)

  • Depth: 246mm (9.68″)

  • Weight: 10.5kg

  • Power: 200 Watt RMS

  • Sensitivity (1W@1m): 93 dB

  • Max SPL: 118 dB

  • Frequency response (-3dB): 53Hz – 18KHz

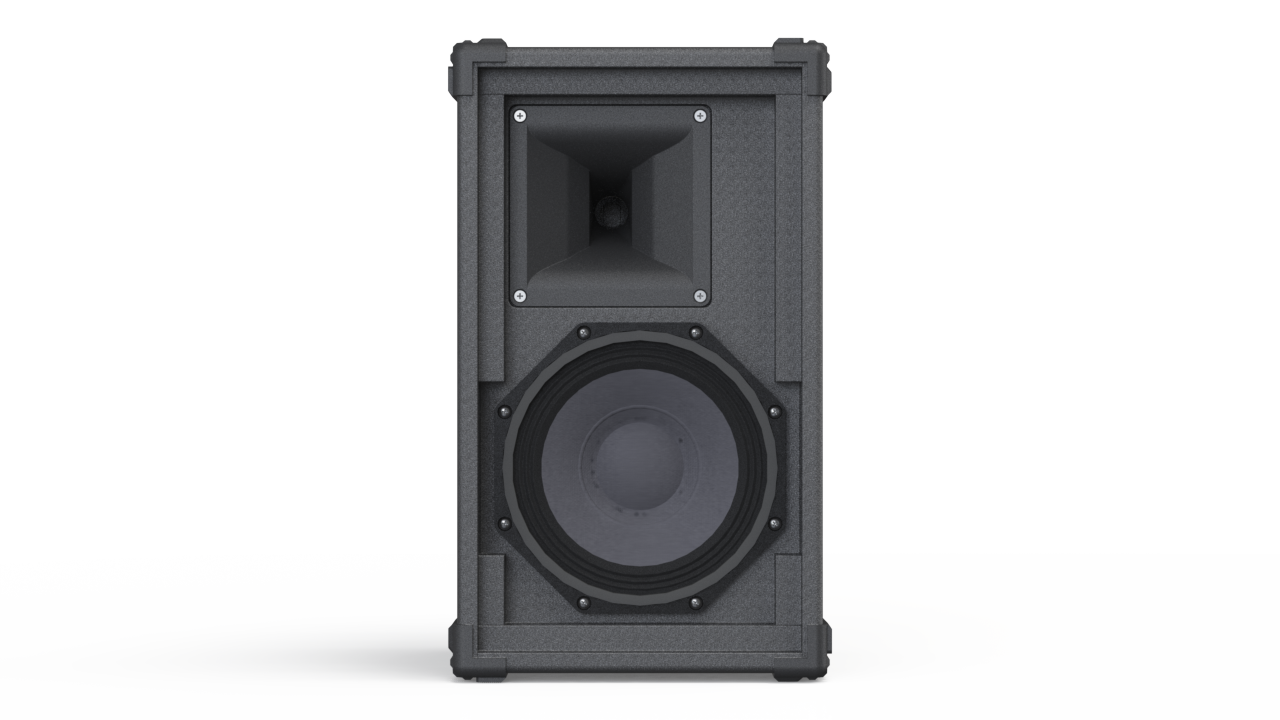

  • Configuration: 8” LF and 1” HF compression driver mounted on a 60×90 degree horn

Features:

  • Waterproof birch plywood cabinet finished with tough polyurethane waterproof coating

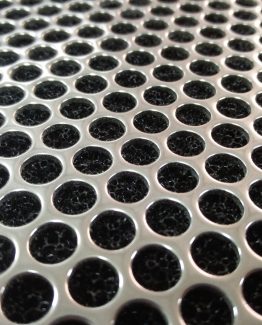

  • Galvanized polyurethane coated steel grille

  • Powder coated handles

  • Stainless steel screws

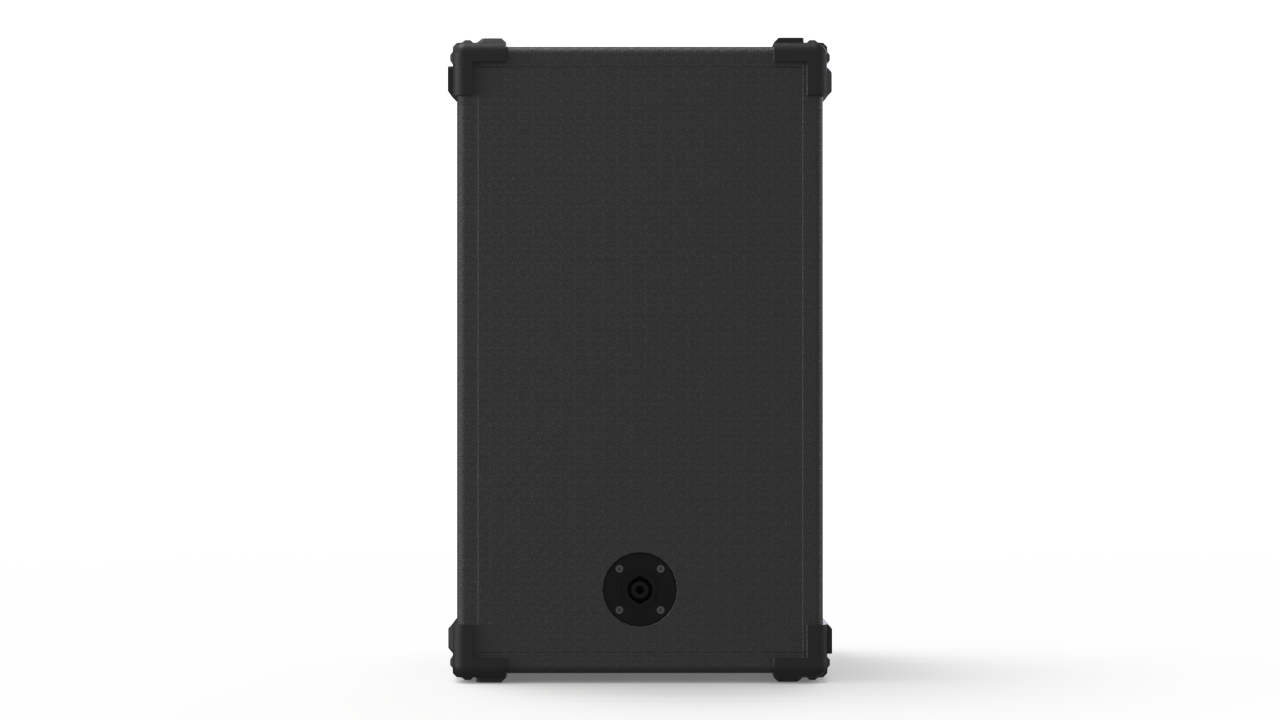

  • Tough ABS recessed panel for twin Speakon connections

  • Tough nylon feet

Additional information

COLOR

Blank Aluminium – RAL 9006, TRAFFIC RED – RAL 3020
